Detector

Resolution

400×300@17μm

Spectral Range

8μm~14μm

NETD

≤50mk@25°C /F1.0

Focus lens

Focal Length

35mm F1.2

Focusing

Manual focus

FOV

10.66°×8.0°

Image Processing

Frame Rate

50Hz(PAL)/60Hz(NSTC)

Digital Zoom

2×、4×

Auto Tracking

Hotspot track

Calibration

Automatic calibration/ Manual calibration (shutter) /Manual scene compensation

Color Palettes

Black hot, white hot, red hot, green hot

Contrast/Brightness

Adjustable

Power Systems

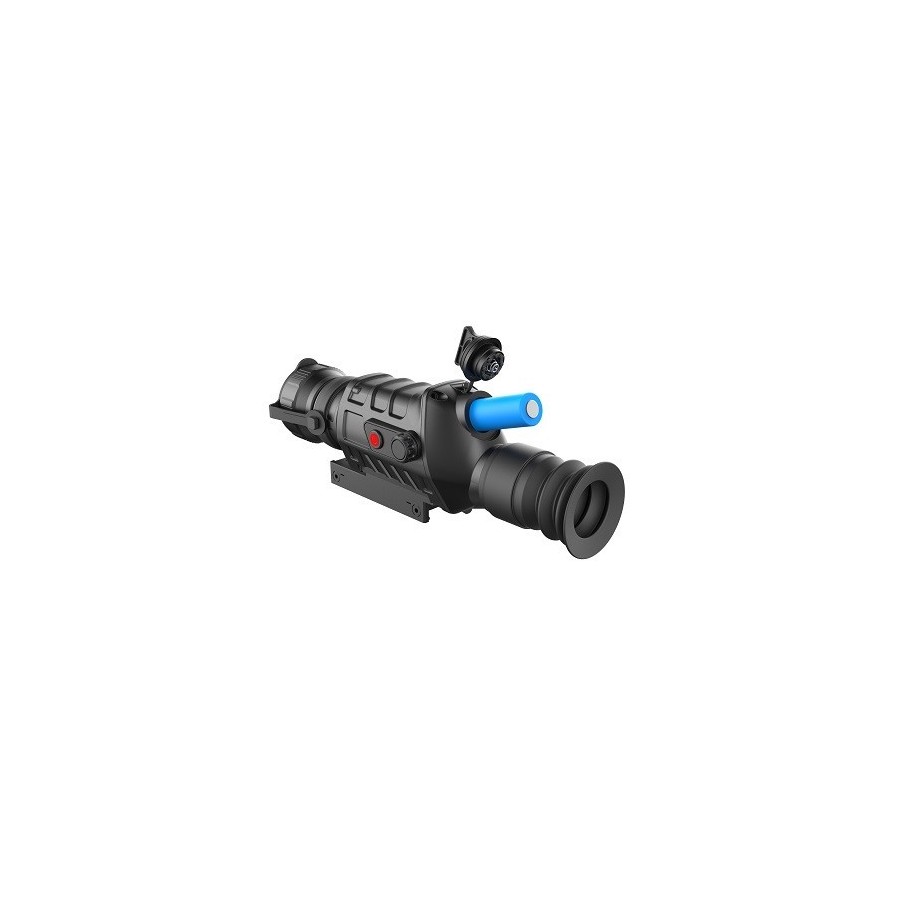

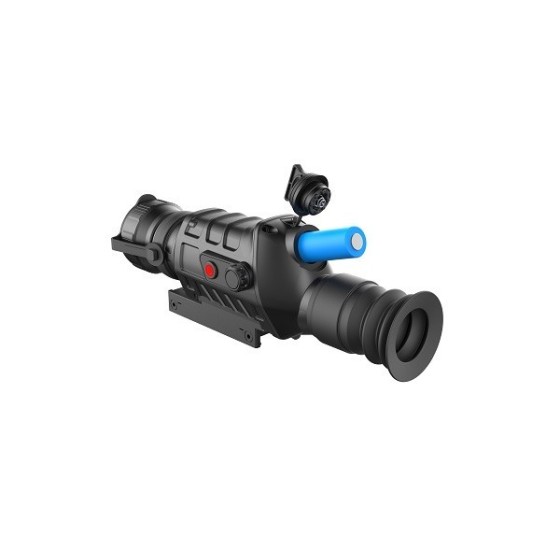

Battery

CR123A×2/ICR16340×2

Charging

On External charger

Working Time

Continuous Operating over 3 hours@25°C

Interface

4-Pin LEMO Interface

Analog&video output

Display system

OLED

Colorful 0.39 inch OLED screen 1024×768

Pupil Distance

10mm

Pupil Caliber

20mm

Video Format

PAL/NTSC

Digital Zoom

1

View Finder

Monocular display(×2) ±5 adjustable diopter

Environment parameter

Operating Temperature

-30°C-50°C

StorageTemperature

-45°C-70°C

Humidity

Working and storage10% ~ 95%, Non condensing

Impact

500G/1ms

IP level

IP67

Certificate

RoHS Certificate/CE Certificate/FCC Certificate

Physical Characteristics

Weight

≤400g

Size

150mm×52mm×57mm

Package

Standard

Thermal infrared imager/User manual/Blinder/Warranty

Optional

Adapter ring/External eyepiece/ CR123A×2(unrechargeable)battery/ICR16340×2(rechargeable) battery/Charger/Bluetooth remote controller/Lemo video cable/Picatinny rail

Cover ring adapterA:Compatible with 38/40/42/44/46mm; Cover ring adapterB:Compatible with 48/50/52/54mm; Cover ring adapterC:Compatible with 56/58/60/62/64mm;

Detection Range

Human:1.8m×0.5m

1000m

Vehicle:2.3m×2.3m

2400m

Recognition Range

Human:1.8m×0.5m

500m

Vehicle:2.3m×2.3m

1000m
